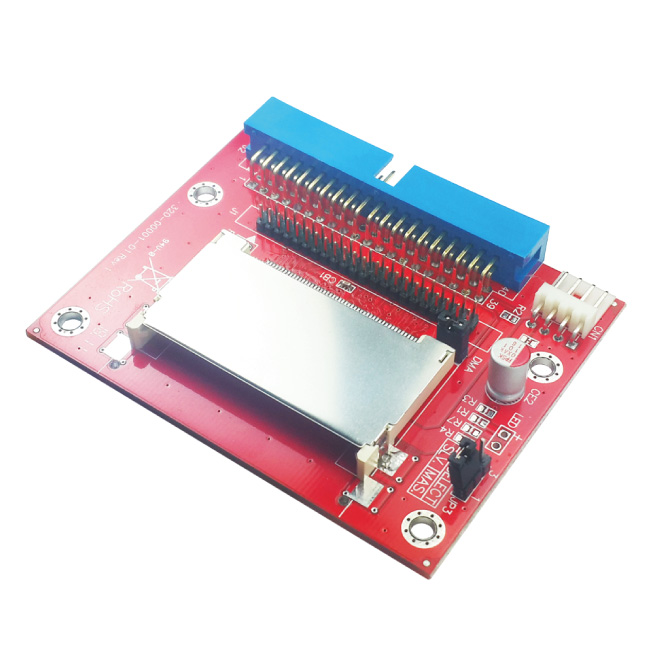

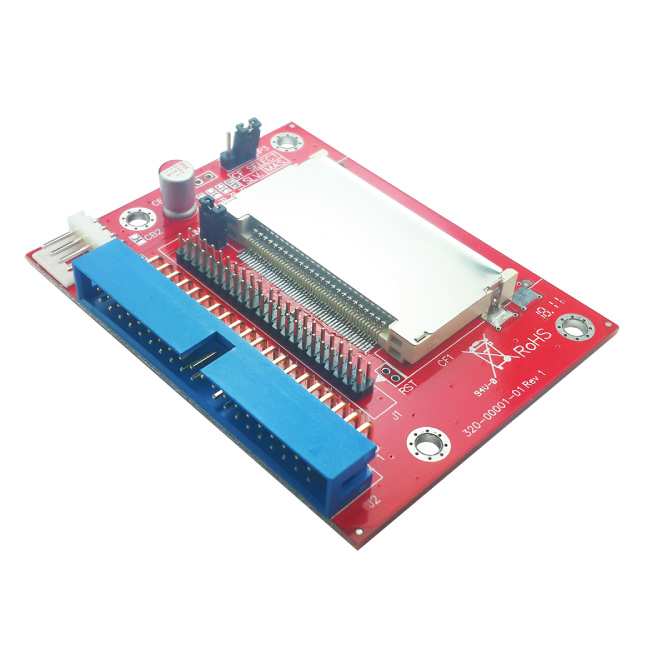

CF-IDE04
Features:

  • Converts CF card to 40-pin IDE/ 44-pin IDE
  • No driver is needed
  • 50-Pin standard compact flash socket
  • Compatible with Compact Flash Type I, Type II and micro-drive
  • Master or slave mode selection
  • Supports DMA and Ultra DMA modes
Specification:

  • Model: CF-IDE04
  • Connector: CF card slot / 40-pin IDE, 44-pin IDE
  • Operating Temperature: -20°C ~ 70°C
  • Dimensions: 80.0mm * 62.8mm
