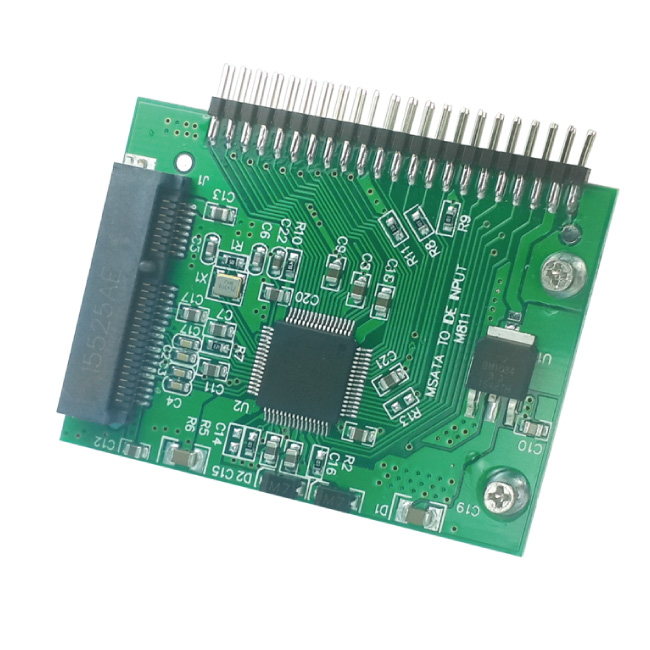

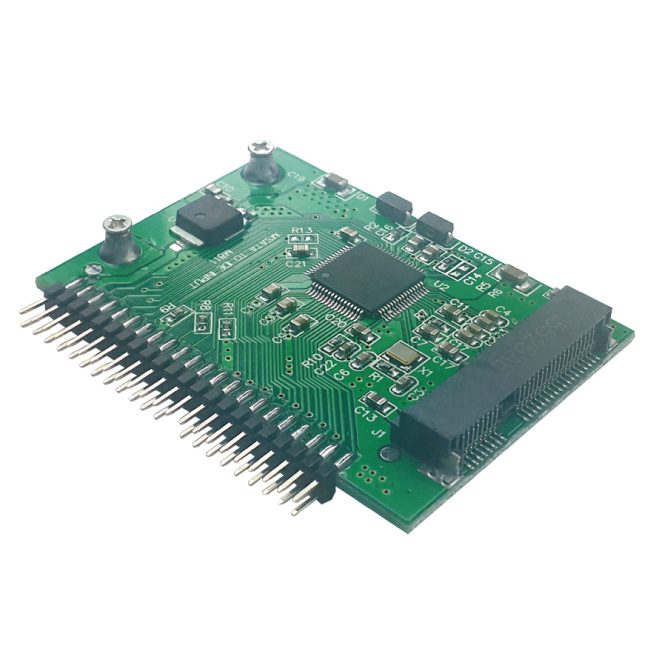

MS-IDE01
Features:

  • Converts mSATA SSD to 2.5” IDE 44pin
  • Serial ATA 1.0 Specification compliant
  • Automatic Serial ATA 3.0/1.5 Gbps speed negotiation
  • Support Serial ATA hot-plug
  • Supports full-size mSATA
  • Power from IDE44
Specification:

  • Model: MS-IDE01
  • Connector: mSATA / 44-pin 2.0mm standard IDE connector (male)
  • Operating Temperature: 0°C ~ 75°C
  • Gold Fingers: 10μ gold-plating
  • Dimensions: 57.1mm * 46.6mm
