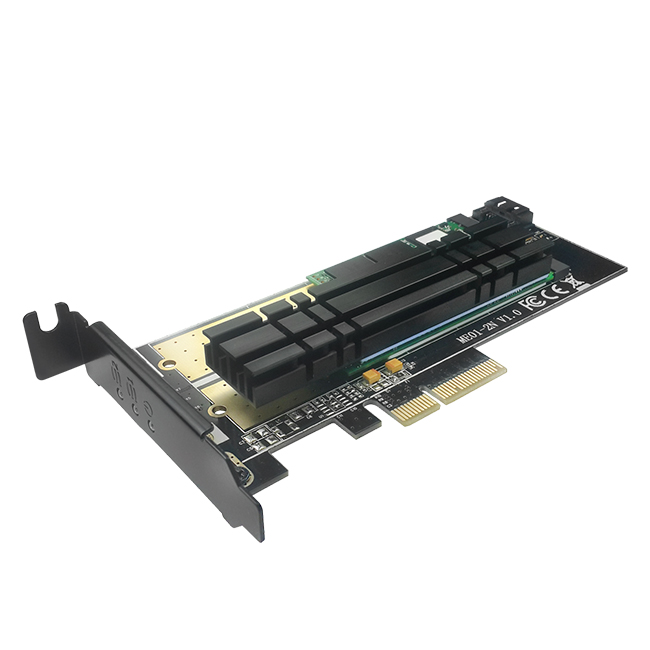

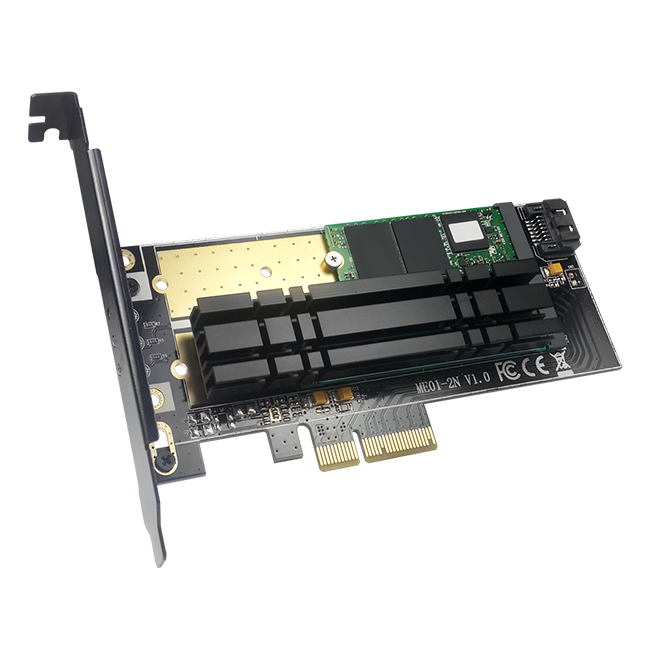

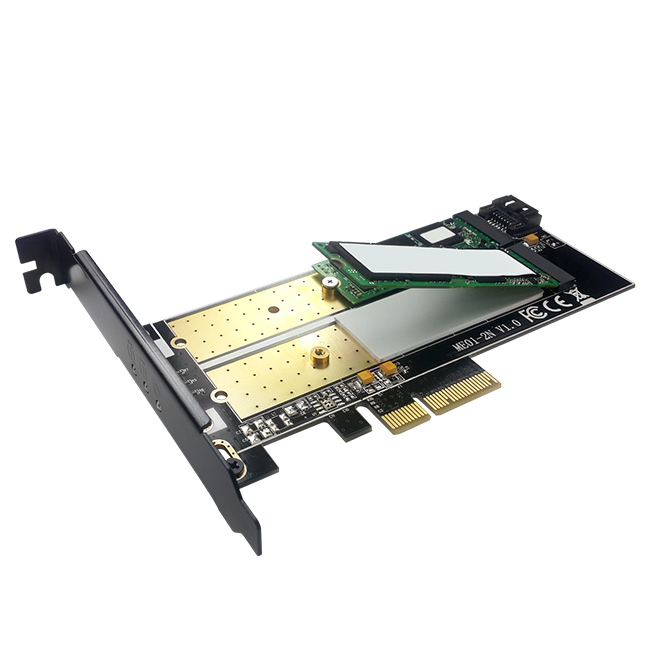

ME01
Design for M.2 SSD
Features:

  • ME01 provides one B-key m.2 socket for SATA interface SSD and one M-key m.2 socket for PCI-E x4 interface SSD.
  • Compatible with all of M.2 length.
  • Provides heatsink and thermal pads to cool down your M.2 PCI-E SSD to prevent your M.2 PCI-E SSD from throttling or damage caused by overheating.
  • ME01 has a gold-clad surface area on the installation position of M.2 SSD to help conduct and dissipate heat.
  • Includes high-profile and low-profile brackets.
  • Provides three LED indicators to show the connection of ME01 and each M.2 slots.
Specification:

  • Available M.2 dimension: 2230, 2242, 2260, 2280, 22110
  • Available M.2 interface: B-Key for SATA, M-Key for PCI-E x4
  • Available PCI-E slot on M/B: PCI-E x4/ PCI-E x8/ PCI-E x16
  • Profile bracket size: 8cm & 12cm
  • Package: M.2 SSD adapter, Heatsink, High-profile bracket, Low-profile bracket, Thermal pads
