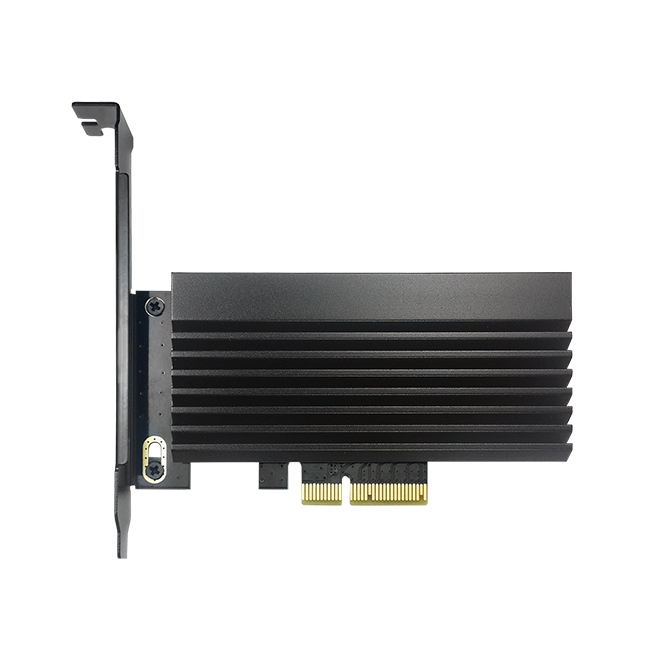

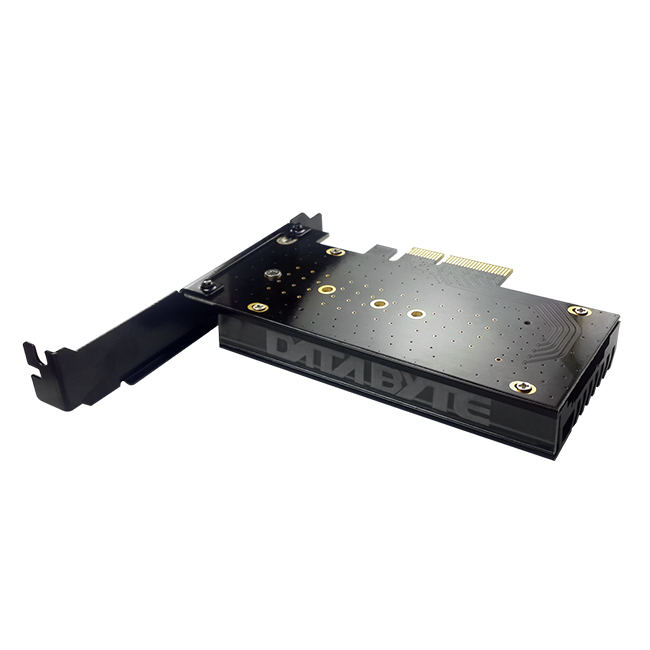

ME03
Design for M.2 SSD
Features:

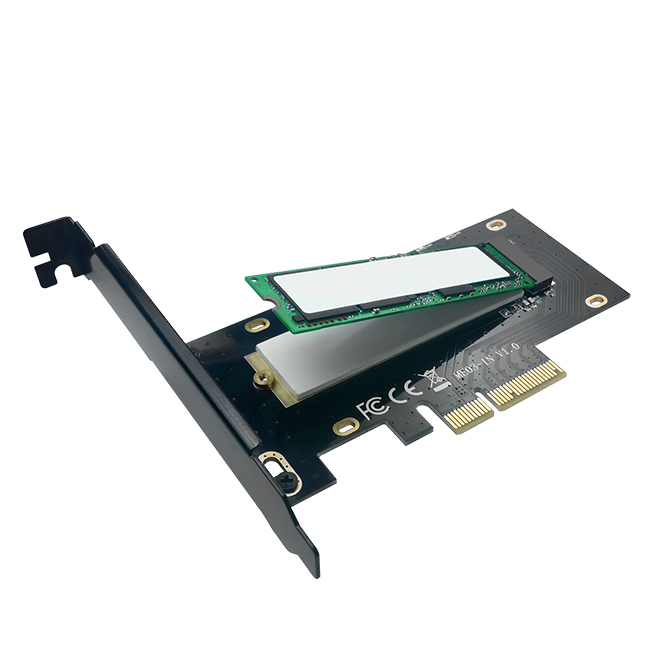

  • ME03 provides M-key m.2 socket for PCI-E x4 interface SSD.

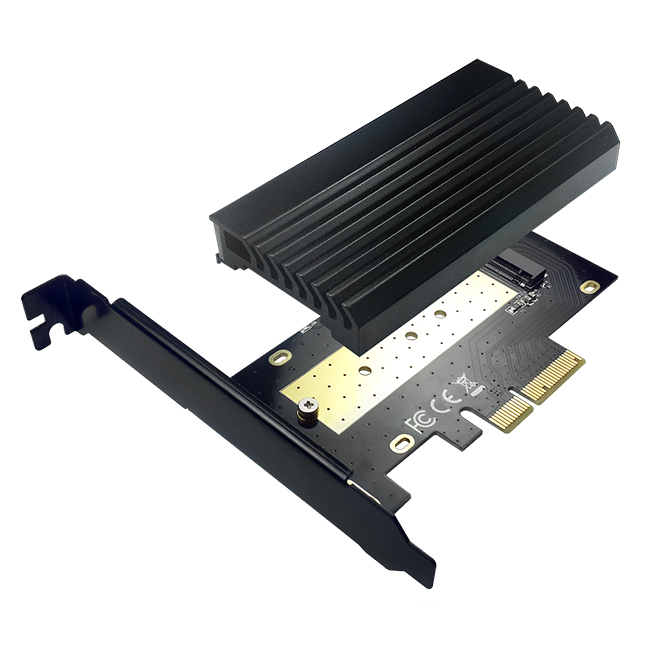

  • ME03 provides a fully covered heatsink to prevent your M.2 PCI-E SSD from throttling or damage caused by overheating.
  • ME03 has a gold-clad surface area on the installation position of M.2 SSD to help conduct and dissipate heat.
  • Includes high-profile and low-profile brackets.

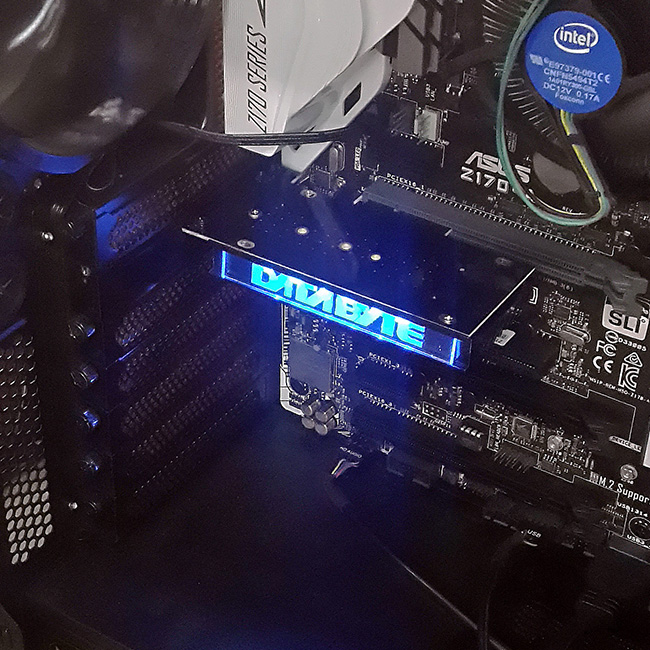

  • Provides LED light to show the brand logo inside the PC case.
Specification:

  • Available M.2 dimension: 2242, 2260, 2280
  • Available M.2 interface: M-Key for PCI-E x4
  • Available PCI-E slot on M/B: PCI-E x4/ PCI-E x8/ PCI-E x16
  • Profile bracket size: 8cm & 12cm
  • Package: M.2 adapter, Heatsink, High profile bracket, Low profile bracket, Thermal pads
